| 圓盤系統腳手架立桿 | |||
| 型號 | 產品描述 | 重量(千克) | 重量(磅) |
| AR.S.3000 | 圓盤系統腳手架立桿 3000mm (9'10") | 14.41 | 31.77 |
| AR.S.2500 | 圓盤系統腳手架立桿 2500mm (8'2") | 12.12 | 26.72 |
| AR.S.2000 | 圓盤系統腳手架立桿 2000mm (6'6") | 9.82 | 21.66 |
| AR.S.1500 | 圓盤系統腳手架立桿 1500mm (4'11") | 7.53 | 16.60 |
| AR.S.1000 | 圓盤系統腳手架立桿 1000mm (3'3") | 5.24 | 11.55 |
| AR.S.500 | 圓盤系統腳手架立桿 500mm (1'8") | 2.94 | 6.49 |
AR.S.XXXX
|
|||
| 圓盤系統腳手架橫桿 | |||
| 型號 | 產品描述 | 重量(千克) | 重量(磅) |
| AR.L.3050 | 圓盤系統腳手架橫桿 3050mm (10') | 11.66 | 25.74 |
| AR.L.2745 | 圓盤系統腳手架橫桿 2745mm (9') | 10.57 | 26.74 |
| AR.L.2440 | 圓盤系統腳手架橫桿 2440mm (8') | 9.47 | 20.88 |
| AR.L.2130 | 圓盤系統腳手架橫桿 2130mm (7') | 8.36 | 18.43 |
| AR.L.1830 | 圓盤系統腳手架橫桿 1830mm (6') | 7.28 | 16.06 |
| AR.L.1520 | 圓盤系統腳手架橫桿 1520mm (5') | 6.17 | 13.61 |
| AR.L.1220 | 圓盤系統腳手架橫桿 1220mm (4') | 5.10 | 11.24 |
| AR.L.1150 | 圓盤系統腳手架橫桿 1150mm (3'10") | 4.84 | 10.68 |
| AR.L.1065 | 圓盤系統腳手架橫桿 1065mm (3'6") | 4.54 | 10.01 |
| AR.L.910 | 圓盤系統腳手架橫桿 910mm (3') | 3.98 | 8.78 |
| AR.L.650 | 圓盤系統腳手架橫桿 650mm (2'2") | 3.05 | 6.73 |
| AR.L.610 | 圓盤系統腳手架橫桿 610mm (2') | 2.91 | 6.41 |
| AR.L.3072 | 圓盤系統腳手架橫桿 3072mm | 11.74 | 25.89 |
| AR.L.2572 | 圓盤系統腳手架橫桿 2572mm | 9.94 | 21.92 |
| AR.L.2072 | 圓盤系統腳手架橫桿 2072mm | 8.15 | 17.97 |
| AR.L.1572 | 圓盤系統腳手架橫桿 1572mm | 6.36 | 14.02 |
| AR.L.1400 | 圓盤系統腳手架橫桿 1400mm | 5.74 | 12.66 |
| AR.L.1286 | 圓盤系統腳手架橫桿 1286mm | 5.33 | 11.75 |
| AR.L.1088 | 圓盤系統腳手架橫桿 1088mm | 4.62 | 10.19 |
| AR.L.1036 | 圓盤系統腳手架橫桿 1036mm | 4.44 | 9.79 |
| AR.L.1020 | 圓盤系統腳手架橫桿 1020mm | 4.38 | 9.66 |
| AR.L.880 | 圓盤系統腳手架橫桿 880mm | 3.88 | 8.56 |
| AR.L.732 | 圓盤系統腳手架橫桿 732mm | 3.35 | 7.39 |
| AR.L.3000 | 圓盤系統腳手架橫桿 3000mm | 11.48 | 25.31 |
| AR.L.2500 | 圓盤系統腳手架橫桿 2500mm | 9.69 | 21.37 |
| AR.L.2000 | 圓盤系統腳手架橫桿 2000mm | 7.89 | 17.40 |
| AR.L.1500 | 圓盤系統腳手架橫桿 1500mm | 6.10 | 13.45 |
| AR.L.1000 | 圓盤系統腳手架橫桿 1000mm | 4.31 | 9.50 |
| AR.L.2400 | 圓盤系統腳手架橫桿 2400mm | 9.33 | 20.57 |
| AR.L.1800 | 圓盤系統腳手架橫桿 1800mm | 7.18 | 15.83 |
| AR.L.1200 | 圓盤系統腳手架橫桿 1200mm | 5.02 | 11.07 |
| AR.L.900 | 圓盤系統腳手架橫桿 900mm | 3.95 | 8.71 |
| AR.L.600 | 圓盤系統腳手架橫桿 600mm | 2.87 | 6.33 |
AR.L.XXXX
|
|||
| 圓盤系統腳手架斜拉桿 | |||
| 型號 | 產品描述 | 重量(千克) | 重量(磅) |
| AR.DB.3050x2000 | 圓盤系統腳手架斜拉桿 3050x2000mm (10') | 10.87 | 23.96 |
| AR.DB.2745x2000 | 圓盤系統腳手架斜拉桿 3050x2000mm (10') | 10.24 | 23.96 |
| AR.DB.2440x2000 | 圓盤系統腳手架斜拉桿 2440x2000mm (8') | 9.62 | 21.20 |
| AR.DB.2130x2000 | 圓盤系統腳手架斜拉桿 2130x2000mm (7') | 9.03 | 19.91 |
| AR.DB.1830x2000 | 圓盤系統腳手架斜拉桿 1830x2000mm (6') | 8.51 | 18.76 |
| AR.DB.1520x2000 | 圓盤系統腳手架斜拉桿 1520x2000mm (5') | 7.91 | 17.45 |
| AR.DB.1220x2000 | 圓盤系統腳手架斜拉桿 1220x2000mm (4') | 7.62 | 16.80 |
| AR.DB.1150x2000 | 圓盤系統腳手架斜拉桿 1150x2000mm (3'10") | 7.53 | 16.61 |
| AR.DB.1065x2000 | 圓盤系統腳手架斜拉桿 1065x2000mm (3'6") | 7.44 | 16.41 |
| AR.DB.910x2000 | 圓盤系統腳手架斜拉桿 910x2000mm (3') | 7.29 | 16.07 |
| AR.DB.650x2000 | 圓盤系統腳手架斜拉桿 650x2000mm (2'2") | 7.08 | 15.62 |
| AR.DB.610x2000 | 圓盤系統腳手架斜拉桿 610x2000mm (2') | 6.90 | 15.21 |
| AR.DB.3072x2000 | 圓盤系統腳手架斜拉桿 3072x2000mm | 10.95 | 24.14 |
| AR.DB.2572x2000 | 圓盤系統腳手架斜拉桿 2572x2000mm | 9.89 | 21.81 |
| AR.DB.2072x2000 | 圓盤系統腳手架斜拉桿 2072x2000mm | 8.93 | 19.69 |
| AR.DB.1572x2000 | 圓盤系統腳手架斜拉桿 1572x2000mm | 8.10 | 17.86 |
| AR.DB.1400x2000 | 圓盤系統腳手架斜拉桿 1400x2000mm | 7.86 | 17.33 |
| AR.DB.1286x2000 | 圓盤系統腳手架斜拉桿 1286x2000mm | 7.71 | 17.00 |
| AR.DB.1088x2000 | 圓盤系統腳手架斜拉桿 1088x2000mm | 7.47 | 16.47 |
| AR.DB.1036x2000 | 圓盤系統腳手架斜拉桿 1036x2000mm | 7.41 | 16.34 |
| AR.DB.1020x2000 | 圓盤系統腳手架斜拉桿 1020x2000mm | 7.40 | 16.32 |
| AR.DB.880x2000 | 圓盤系統腳手架斜拉桿 880x2000mm | 7.26 | 16.01 |
| AR.DB.732x2000 | 圓盤系統腳手架斜拉桿 732x2000mm | 7.14 | 15.74 |
| AR.DB.3000x2000 | 圓盤系統腳手架斜拉桿 3000x2000mm | 10.77 | 23.75 |
| AR.DB.2500x2000 | 圓盤系統腳手架斜拉桿 2500x2000mm | 9.74 | 21.48 |
| AR.DB.2000x2000 | 圓盤系統腳手架斜拉桿 2000x2000mm | 8.80 | 19.40 |
| AR.DB.1500x2000 | 圓盤系統腳手架斜拉桿 1500x2000mm | 8.00 | 17.64 |
| AR.DB.1000x2000 | 圓盤系統腳手架斜拉桿 1000x2000mm | 7.38 | 16.27 |
| AR.DB.2400x2000 | 圓盤系統腳手架斜拉桿 2400x2000mm | 9.55 | 21.06 |
| AR.DB.1800x2000 | 圓盤系統腳手架斜拉桿 1800x2000mm | 8.47 | 18.68 |
| AR.DB.1200x2000 | 圓盤系統腳手架斜拉桿 1200x2000mm | 7.60 | 16.76 |
| AR.DB.900x2000 | 圓盤系統腳手架斜拉桿 900x2000mm | 7.28 | 16.05 |
 AR.DB.XXXX |
|||

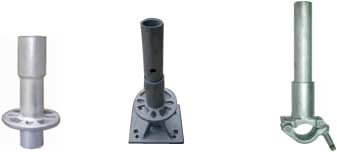

| 圓盤系統腳手架腳套 | |||
| 型號 | 產品描述 | 重量(千克) | 重量(磅) |
| AR.COL.280 | 圓盤系統腳手架腳套 280mm | 1.81 | 3.98 |
| AR.COL.235 | 圓盤系統腳手架腳套 235mm | 1.52 | 3.35 |
| AR.CJ | 圓盤系統腳手架腳輪底座 | 3.51 | 7.74 |
| AR.SA | 圓盤系統腳手架套管接頭 | 1.62 | 3.58 |
 AR.COL AR.CJ AR.SA |
|||

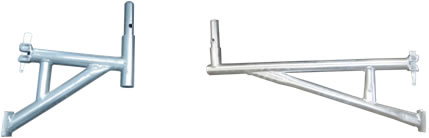

| 圓盤系統腳手架邊支架 | |||
| 型號 | 產品描述 | 重量(千克) | 重量(磅) |
| AR.SB.400 | 圓盤系統腳手架邊支架 400mm (1'4") | 4.88 | 10.77 |
| AR.SB.650 | 圓盤系統腳手架邊支架 650mm (2'2") | 6.72 | 14.81 |
| AR.SB.880 | 圓盤系統腳手架邊支架 880mm (2'11") | 8.12 | 17.91 |
| AR.SBW.400 | 圓盤系統腳手架邊支架 (墻) 400mm (1'4") | 4.82 | 10.62 |
| AR.SBW.650 | 圓盤系統腳手架邊支架 (墻) 650mm (2'2") | 6.72 | 14.82 |
| AR.SBW.880 | 圓盤系統腳手架邊支架 (墻) 880mm (2'11") | 8.36 | 18.44 |
 AR.SB.XXXX AR.SBW.XXXX |
|||

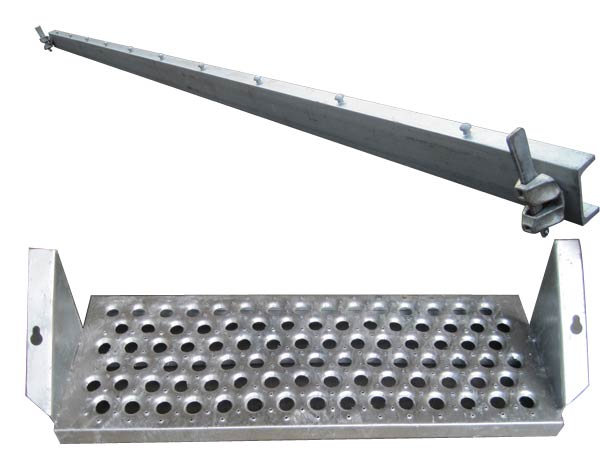

| 圓盤系統腳手架可拆式樓梯(矩管) | |||
| 型號 | 產品描述 | 重量(千克) | 重量(磅) |
| AR.SST.7(RHS) | 圓盤系統腳手架7'可拆式樓梯(矩管)套裝 | 90.71 | 200 |
| AR.SST.STR.7(RHS) | 圓盤系統腳手架7'可拆式樓梯矩管掛梁 | 13.13 | 28.95 |
| AR.SST.TRD.32 | 圓盤系統腳手架可拆式樓梯32"梯級板 | 6.45 | 14.21 |
AR.SST
|
|||
| 圓盤系統腳手架可拆式樓梯(槽鋼) | |||
| 型號 | 產品描述 | 重量(千克) | 重量(磅) |
| AR.SST.7(C8) | 圓盤系統腳手架7'可拆式樓梯(槽鋼)套裝 | 134.25 | 296 |
| AR.SST.STR.7(C8) | 圓盤系統腳手架7'可拆式樓梯槽鋼掛梁 | 25.56 | 56.35 |
| AR.SST.TRD.32 | 圓盤系統腳手架可拆式樓梯32"梯級板 | 8.31 | 18.33 |
AR.SST
|
|||

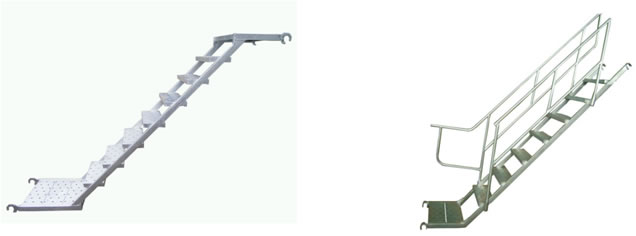

| 圓盤系統腳手架J型樓梯 | |||
| 型號 | 產品描述 | 重量(千克) | 重量(磅) |
| AR.ZST.8 | 圓盤系統腳手架Z型樓梯 2440x2000mm (8') | 41.23 | 90.91 |
| AR.JST.7 | 圓盤系統腳手架J型樓梯 2130x2000mm (7') | 38.13 | 84.08 |
| AR.JST.IHR | 圓盤系統腳手架J型樓梯內扶手 | 7.17 | 15.81 |
| AR.JST.OHR | 圓盤系統腳手架J型樓梯外扶手 | 10.94 | 24.13 |
AR.ZST AR.JST
|
|||
| 圓盤系統腳手架雙梁桁架 | |||
| 型號 | 產品描述 | 重量(千克) | 重量(磅) |
| AR.DTL.4260 | 圓盤系統腳手架雙梁桁架4260mm (14') | 46.84 | 103.28 |
| AR.DTL.5180 | 圓盤系統腳手架雙梁桁架5180mm (17') | 56.20 | 123.92 |
| AR.DTL.6100 | 圓盤系統腳手架雙梁桁架6100mm (20') | 65.56 | 144.54 |
| AR.DTL.7620 | 圓盤系統腳手架雙梁桁架7620mm (25') | 90.15 | 198.76 |
| AR.DTL.8520 | 圓盤系統腳手架雙梁桁架8520mm (28') | 98.04 | 216.16 |
 AR.DTL.XXXX |
|||
| 圓盤系統腳手架彎梁桁架 | |||
| 型號 | 產品描述 | 重量(千克) | 重量(磅) |
| AR.TL.1520 | 圓盤系統腳手架彎梁桁架1520mm (5') | 4.31 | 9.51 |
| AR.TL.1830 | 圓盤系統腳手架彎梁桁架1830mm (6') | 5.11 | 11.26 |
| AR.TL.2130 | 圓盤系統腳手架彎梁桁架2130mm (7') | 6.01 | 13.25 |
| AR.TL.2440 | 圓盤系統腳手架彎梁桁架2440mm (8') | 6.92 | 15.26 |
| AR.TL.3050 | 圓盤系統腳手架彎梁桁架3050mm (10') | 8.62 | 19.01 |
 AR.TL.XXXX |
|||
| 圓盤系統腳手架雙管橫桿 | |||
| 型號 | 產品描述 | 重量(千克) | 重量(磅) |
| AR.DL.1520 | 圓盤系統腳手架雙管橫桿1520mm (5') | 11.80 | 26.02 |
| AR.DL.1830 | 圓盤系統腳手架雙管橫桿1830mm (6') | 14.26 | 31.44 |
| AR.DL.2130 | 圓盤系統腳手架雙管橫桿2130mm (7') | 16.41 | 36.18 |
| AR.DL.2440 | 圓盤系統腳手架雙管橫桿2440mm (8') | 18.87 | 41.6 |
| AR.DL.3050 | 圓盤系統腳手架雙管橫桿3050mm (10') | 23.48 | 51.76 |
 AR.DL.XXXX |
|||

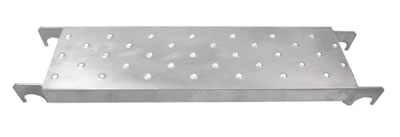

| 圓盤系統腳手架腳踏板 (9.5" 寬) | |||
| 型號 | 產品描述 | 重量(千克) | 重量(磅) |
| AR.SSP.3050 | 圓盤系統腳手架腳踏板3050mm (10') | 20.56 | 42.92 |
| AR.SSP.2440 | 圓盤系統腳手架腳踏板2440mm (8') | 17.01 | 35.13 |
| AR.SSP.2130 | 圓盤系統腳手架腳踏板2130mm (7') | 15.21 | 31.17 |
| AR.SSP.1830 | 圓盤系統腳手架腳踏板1830mm (6') | 13.47 | 27.34 |
| AR.SSP.1520 | 圓盤系統腳手架腳踏板1520mm (5') | 11.66 | 23.39 |
| AR.SSP.1220 | 圓盤系統腳手架腳踏板1220mm (4') | 9.92 | 19.56 |
| AR.SSP.1150 | 圓盤系統腳手架腳踏板1150mm (3'10") | 9.65 | 18.94 |
| AR.SSP.1065 | 圓盤系統腳手架腳踏板1065mm (3'6") | 9.02 | 17.57 |
| AR.SSP.910 | 圓盤系統腳手架腳踏板910mm (3') | 8.11 | 15.61 |
| AR.SSP.650 | 圓盤系統腳手架腳踏板650mm (2'2") | 6.60 | 12.28 |
| AR.SSP.610 | 圓盤系統腳手架腳踏板610mm (2') | 6.36 | 11.77 |
 AR.SSP.XXXX |
|||
